Wrong air knife. Wrong application. That combination costs energy, slows production, and leaves products that aren't ready for the next step on the line.
Picking the right system starts with understanding what you actually need to remove, the surfaces you're working with, and how your line runs. This guide covers how air knife drying systems work, how they compare to compressed air and fans, and which Maxum product fits your process, with a practical selection table and deep application detail by industry.
What Is an Industrial Air Knife?
An air knife is a device that produces a uniform, high-velocity sheet of air across a surface. It removes water, oil, dust, debris, and contaminants in a single pass, without making contact with the product.
Individual compressed air nozzles fire bursts into narrow spots. An air knife delivers controlled, even airflow across the full width of your product or conveyor. That means faster drying, cleaner surfaces, and fewer defects before labeling, coating, assembly, or packaging.
Maxum's Maxumizer® Air Knives go a step further. The tear-drop housing and internal converging and laminar flow sections keep airflow smooth and fast all the way to the surface. More air does useful work instead of getting lost in turbulence.
Airflow That Makes a Real Difference: How Three Systems Compare
Most manufacturers use one of three air delivery methods. Here is how they stack up for industrial drying and blow-off:
| Metric | Fan / HVAC | Compressed Air | Blower + Air Knife (Maxum) |
|---|---|---|---|
| Energy Cost | Low, but very low force | Very high — most expensive per CFM | Up to 80% less than compressed air |
| Air Velocity | Low — not enough for industrial drying | High but inconsistent | 200–500 mph, consistent and controlled |
| Dryness Result | Poor — moves moisture, rarely removes it | Variable — often 50–60% effective | Complete dryness achievable |
| Air Quality | Clean | Often contaminated: oil, water, debris | Clean, filtered air |
| Maintenance | Low | High — compressors require significant upkeep | Low — scheduled belt and filter replacement |
| Best Use | Ventilation, general climate control | Pneumatic tools, precision spot work | Industrial drying, blow-off, cleaning, cooling |
Compressed air is the most common starting point because it is already in most plants. It is also the most expensive way to move air continuously. The energy required to compress, store, and push it through a system, plus the oil, water, and debris it often carries, makes it a costly choice for any application that runs all day.
Fan-based systems move a lot of volume at low velocity. They can circulate air around a product. They rarely have enough force to physically remove moisture or debris from a surface.
Blower-driven air knife systems, like those from Maxum, deliver high velocity and high volume using a fraction of the energy. The air is clean, filtered, and consistent. Most customers see operating cost reductions of 50–80% after replacing compressed air blow-off with a Maxum system.
Every production environment is different. Contact Maxum's application team to discuss your specific process conditions before selecting a system.
Air Knife vs. Nozzle Bar® vs. Air Nozzle: A Practical Selection Guide
Maxum builds three primary air delivery devices. Each one suits different surface types, product geometries, and line configurations. Use this table as a starting point:
| Attribute | Air Knife | Nozzle Bar® | Air Nozzle |
|---|---|---|---|
| Best For | Flat, even surfaces: bottles, cans, sheets, trays | Complex shapes, angles, pockets, multi-surface parts | Spot blow-off, tight or hard-to-reach areas |
| Coverage | Wide, uniform sheet across full product width | Wide + concentrated: knife coverage with nozzle force | Targeted, single-point impact |
| Mounting | Close-range recommended | Close to mid-range | Close to long range — flexible positions |
| Nozzle Pattern | Continuous slot — uniform air curtain | Interchangeable nozzle patterns — reconfigure without replacing the system | Individual orifice — high concentration |
| Line Speed | Low to high-speed conveyor lines | Low to high-speed conveyor lines | Spot or deep coverage — all speeds |
| Material | Stainless steel — EPDM or Viton seal options | Stainless steel — patented internal converging and laminar flow design | Polymer body — swivel or fixed |
| Sizes Available | 6″ to 48″ standard; 2″ & 3″ inlets, up to 120″ | 6″ to 48″ standard; 2″ & 3″ inlets, up to 120″ | Multiple orifice sizes; 2″ and 3″ inlet |
| Common Applications | Bottle drying, can drying, food packaging, circuit boards, sheet goods | Automotive parts, complex parts, food containers, dunnage, powder coating | Produce, spot debris removal, large cavities & pockets |

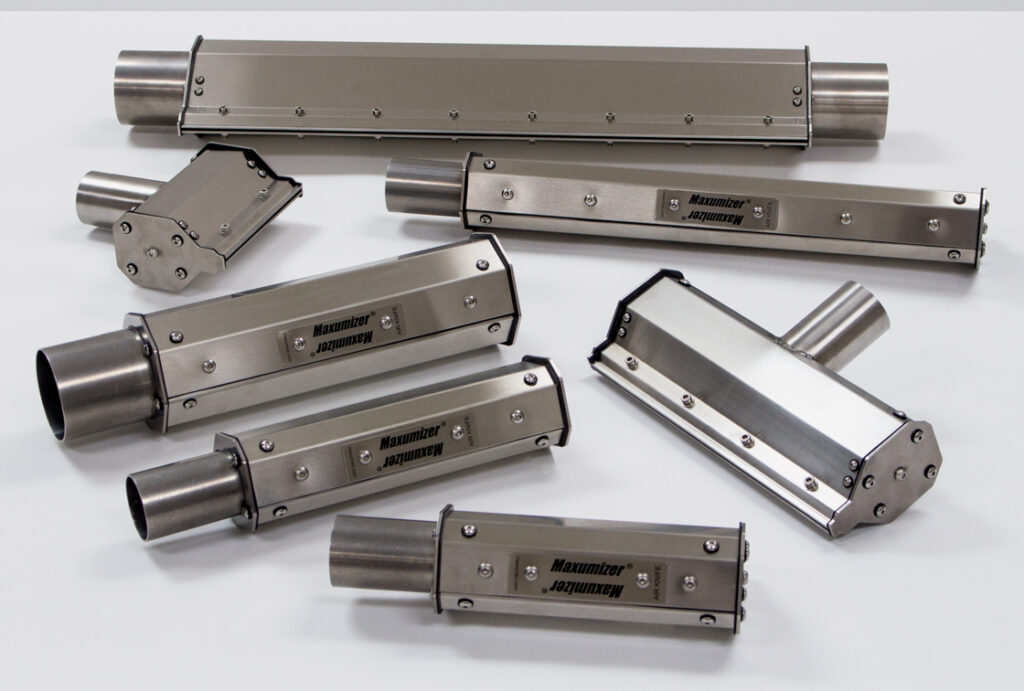

Maxumizer® Air Knives
The Maxumizer® Air Knife produces a wide, uniform curtain of air. It is the right choice when you need consistent coverage across a close, flat, even surface: bottles on a conveyor, cans coming out of a pasteurizer, food trays before labeling, or sheet goods before packaging.
Available in 6″ to 48″ lengths in standard increments. Single end, dual end, and center inlet configurations in both 2″ and 3″ inlet sizes. Stainless steel construction handles washdown environments. The adjustable slot gap lets you tune airflow to match what your application needs.
Find more details here: Maxumizer® Air Knives
Nozzle Bar® Air Knife Systems
The Nozzle Bar® is Maxum's patented solution for surfaces a standard air knife cannot reach evenly. It combines the wide coverage of a traditional air knife with the concentrated force of individual nozzles, using the same air you'd run through a standard knife. The internal converging and laminar flow design organizes and accelerates air before it exits through dozens of individual nozzles.
Each nozzle pattern is interchangeable. You can reconfigure airflow as products, line setups, or drying requirements change, without replacing the system. That makes the Nozzle Bar® the right call for automotive components with complex geometry, multi-level parts, returnable dunnage containers, and anything where air needs to reach angles, pockets, or multiple surfaces in a single pass. In many cases, it is superior for cans, bottles, and food containers as well.
Find more details here: Nozzle Bar® Air Knife Systems
Maxumizer® Air Nozzles
Air nozzles handle targeted, spot blow-off. Where air knives and Nozzle Bar® systems cover a wide area, nozzles concentrate airflow to a specific point. Use them when you're dealing with a tight corner, a hard-to-reach pocket, or a section where a wider device cannot aim accurately enough.
Maxum's swivel nozzles and 90° swivel nozzle versions add flexibility for installations where the blow-off angle changes or isn't fixed at install time. Multiple orifice sizes let you match exit velocity to the application.
Find more details here: Maxumizer® Air Nozzles
Not sure which product fits your line? Most customers come to Maxum with a process challenge, not a product name. The Maxum team evaluates your application and recommends the right configuration based on what you're actually running.
The Wash, Rinse, Dry Principle for Your Industry
Almost every manufactured product follows the same pattern: wash it, rinse it, dry it. Problems happen in the drying step. Moisture, residue, or debris at that stage disrupts labeling, coding, coating, assembly, and packaging downstream.
Here is how Maxum air knife drying systems are used across the four primary industries we serve.
Food Processing and Packaging Assembly
Food lines deal with water, steam, crumbs, oils, and powders every hour of every shift. Moisture left on a surface before labeling or packaging causes failed adhesion, blurred inkjet codes, and contaminated products.
Maxum air knife and Nozzle Bar® systems are used across these food applications:
- Baked goods: removing crumbs and particles from trays, pans, and conveyors after washing cycles
- Fried foods: removing excess oil from product surfaces immediately after the fryer and clearing debris from conveyor belts
- Produce and agriculture: removing water, stems, and debris from fruits and vegetables after washing (tomatoes, apples, grapes, potatoes, and similar products)
- Food packaging (indirect contact): drying trays, tubs, jars, cans, and pouches before labeling, bar-coding, or cartoning
- Other food products: controlling moisture on eggs, pasta, rice, candies, and coated or seasoned foods before packaging
Maxum systems use stainless steel construction as standard with EPDM or Viton seals, appropriate for most food-adjacent environments. In one application, Maxum's Patented Nozzle Bar® Air Devices were installed with a Maxumizer® Air Blower to remove water droplets from grape tomatoes, speeding up production and preparing them for packaging without damaging the product.
Every food line runs differently. Conveyor speed, product temperature, moisture volume, and packaging format all affect how a system should be configured. Contact Maxum before specifying a system for food applications.
Beverage and Bottling Assembly
Wet containers slow production. They weaken cardboard cases, blur inkjet date codes, and cause labels to fail during application or distribution. None of those are minor quality issues. They are production stoppages and customer complaints.
Maxum Nozzle Bar® systems and Air Knives are installed on bottling and canning lines across beer, soda, wine, juice, energy drinks, dairy, and nutritional beverages. Common blow-off points include:
- After washing and rinsing: removing residual water before the next stage
- After pasteurizing or cooling: condensation on cold containers needs to be removed before labeling
- Before inkjet or date coding: any moisture on the surface causes print failures
- Before labeling: wet surfaces cause label adhesion failures
- Before cartoning: moisture soaks into cardboard cases and causes collapse during distribution
- Ionized air rinse of empty containers before filling: removes dust and particles from inside bottles and cans before product goes in
A major U.S. beer producer used Maxum Nozzle Bar® systems to solve soggy cardboard cases collapsing in distribution, a direct result of moisture left on cans after rinsing. A wine maker added Nozzle Bar® devices before foil application to eliminate bubbles and blisters caused by wine residue on cork tops.
Line speed, container material, and the volume of moisture present all affect which configuration works. Reach out to discuss your specific bottling or canning setup before selecting a system.
Industrial and Automotive Parts Manufacturing and Assembly
Parts come out of washers, heat treat tanks, grinding operations, and chemical processes covered in water, oil, stamping fluid, or grinding residue. What happens next, whether that is painting, powder coating, plating, or assembly, depends entirely on a clean, dry surface.
Maxum systems are used across a broad range of industrial applications:
- Automotive and parts washing: moisture removal after parts washers, stamping fluid removal before coating, drying before powder coat or paint
- Chemical plating (chrome, nickel, zinc, anodizing): blow-off after plating and rinse stages, between chemical stages to conserve process chemicals, recapturing rinse water to return to process tanks
- Continuous coil manufacturing: drying coiled steel, aluminum, and other metals after chemical processes and cooling rinses
- Extrusions: blow-off after cooling and chemical rinses on pipe, film, tubing, vinyl, and metal rod
- Wood, ceramics, and composites: debris removal after sawing, drilling, and routing; surface prep before painting, coating, or packaging
- Returnable dunnage containers: drying and cleaning reusable trays used for auto parts, electronics, and consumer goods before reuse
- Machined and ground parts: removing metalworking fluids and grinding residue before finishing operations
One manufacturer added a Maxumizer® Air Blower with large Nozzle Bar® devices to the end of their pretreatment line before powder coating. The result: fewer water stains and drips in the oven, a lower oven temperature, and improved paint quality. All from removing water before it became a downstream problem.
A chrome plating operation added Nozzle Bar® devices in the final drain stage and recovered almost all rinse water back to process tanks, reducing floor mess, cutting water use, and eliminating water spots on the finished product.
Industrial applications vary widely by part geometry, line speed, chemical environment, and throughput. Contact Maxum to evaluate your specific application before selecting a system.
Consumer Goods, Pharmaceuticals, and Electronic Assembly
Products in this category share one requirement: contamination-free surfaces. Whether it is a prescription bottle, a circuit board, or a personal care product, the margin for error is tight.
Moisture, particulates, and residue that might be acceptable on a metal part can render a pharmaceutical container unusable or damage sensitive electronics. Maxum systems handle blow-off across several consumer goods categories:
- Pharmaceuticals and supplements: drying plastic, metal, and glass containers before filling, labeling, and coding; ionized air rinse to remove particles and static from empty containers before filling
- Medical devices: moisture and debris removal before packaging; precision blow-off for implants, instruments, and surgical components after cleaning
- Electronics: anti-static, high-velocity airflow for dust removal from printed circuit boards, semiconductors, and assemblies; drying after chemical etching and solution washing
- Shrink sleeve and consumer packaging: removing steam tunnel moisture immediately after the tunnel to ensure clean inkjet coding and reliable packaging
In one application, Maxum Air Knives installed immediately after a steam tunnel eliminated residual moisture that had been causing inkjet coding failures and wet cardboard. The result: clean surfaces, accurate codes, and more reliable packaging output.
Consumer goods, pharma, and electronics applications often carry specific compliance requirements and product sensitivity considerations. Contact Maxum before specifying a system so your configuration matches the demands of your process.
Key Factors When Sizing an Air Knife System
Once you have identified the right product type, the next step is configuring the system correctly. These are the variables that matter most:
Air Velocity and Volume
Velocity (how fast the air moves) and volume (how much air moves) both drive blow-off results. Maxum systems deliver 200–500 mph of controlled airflow. The right combination depends on what you are removing, the material properties of the product, and how fast your line runs. Matching force to the application matters more than maximizing output.
Device Length
Air knives and Nozzle Bar® systems are available from 6″ to 48″ in standard increments for 3″ models, and up to 120″ and beyond for dual-inlet Nozzle Bar® configurations. Match length to your product width with adequate coverage on each side. Custom lengths and inlet configurations are available.
Inlet Size and Blower Pairing
Maxum air devices use 2″ or 3″ OD inlets. The blower you pair with the system determines available CFM and pressure. All Maxum air knives, nozzles, and Nozzle Bar® systems are compatible with the full Maxumizer® Air Blower line, from the compact L07 to the high-capacity dual-head V40 and beyond.
Use the Blower Selection Guide on the Product Specs page to find the right model for your CFM and pressure requirements.
Material Construction
Maxum air knives and Nozzle Bar® systems are built from stainless steel with EPDM or Viton seals, at near the cost of extruded aluminum products competitors sell. In wet, washdown, or chemically aggressive environments, that matters. Stainless holds up for years under conditions that cause aluminum to corrode, warp, and fail.
Mounting
Proper aim is critical. Air directed slightly off target loses efficiency fast. Maxum's Multi-Clamp mounting system includes end clamps, tube clamps, cross clamps, and pre-built kits designed for air knives, Nozzle Bar® systems, and nozzles in both 2″ and 3″ sizes.
See all mounting options: Mounting Kits and Clamps
Frequently Asked Questions
What is the difference between an air knife and a Nozzle Bar®?
An air knife produces a continuous sheet of air across its full length, ideal for flat, even surfaces. The Nozzle Bar® uses individual nozzles built into the same housing, delivering wide coverage with the concentrated force of separate nozzles. Nozzle patterns are interchangeable, so you can adapt the system without replacing hardware. For parts with complex geometry, pockets, or multiple surfaces, the Nozzle Bar® is typically the stronger choice.
Can I replace compressed air with a blower-driven air knife system?
In most industrial blow-off and drying applications, yes. Blower-driven high-velocity systems perform better than compressed air for continuous drying and cleaning, and they do it using significantly less energy. Many Maxum customers see operating cost reductions of 50–80% after switching from compressed air. The air is also cleaner, filtered rather than pushed through a compressor that can introduce oil and water.
How do I know which blower to pair with my air knife?
The right blower depends on the CFM and pressure your application requires. Maxum's Blower Selection Guide covers single-head models (L07, L10, M15, M20, P25, P30) and dual-head models (V20 through V60) across a full range of airflow and pressure combinations. When in doubt, contact Maxum directly. The team can size the system for your line based on your actual process requirements.
Are Maxum air knives appropriate for food and pharmaceutical environments?
Yes. Maxum air knives and Nozzle Bar® systems use stainless steel construction with EPDM or Viton seals, appropriate for food-adjacent environments. For pharmaceutical and medical applications with specific compliance requirements, contact Maxum to review your process before ordering.
What sizes are available?
Air knives and standard Nozzle Bar® systems are available in 6″ increments from 6″ to 48″. Dual-inlet Nozzle Bar® configurations extend to 120″ and beyond for wide conveyor applications. The 2″ inlet versions suit lighter-duty or compact installations; 3″ inlet versions handle higher CFM requirements. Custom lengths and configurations are available on request.
Do I need a mounting kit?
Yes. Proper positioning is critical for effective blow-off. Maxum's mounting kits include all hardware needed to install and aim your air device correctly. Standard and basic kit options are available for both air knives and Nozzle Bar® systems, as well as for air nozzles. Individual components are also available for custom setups.
My line is different from what I see in the examples. Can Maxum still help?
That is exactly the point. Every production line is different. Line speed, product material, what you are removing, conveyor width, mounting constraints, and downstream process requirements all affect the right configuration. Maxum works with plant managers, engineers, system integrators, and OEMs to build solutions around your exact process. The first step is a conversation, not a catalog.
Rethink Your Air. Start with the Right System.
The right air knife system, properly configured and aimed, is one of the highest return changes you can make to a production line. Cleaner surfaces, fewer rework loops, less energy, and faster throughput.
Maxum builds custom engineered air blow-off systems designed around your process and your product. Every system is assembled in the USA from American-made components, backed by decades of real-world application experience across automotive, food, beverage, and consumer goods manufacturing.
